Tube to Hose Connector Hose ID x Tube OD

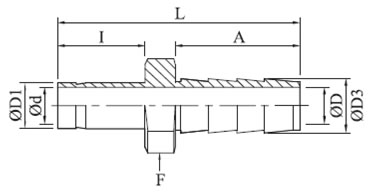

A Tube to Hose Connector Hose ID x Tube OD is a Pipe fitting which consists of a short piece of Hex pipe, provided with a Hose Connection at one end and a Tube at the other end, for Connecting a Hose to a Tube fitting.
PART No. |
ØD3 |
ØD1 |
ØD |
Ød |
L |
A |
I |
F |
|
Hose |
|
|
|
|
|
|
Hex |
||
IIPF/THC/2I-2 |
1/8 |
3.80 |
1/8 |
2.00 |
2.3 |
34.3 |
10.2 |
13.5 |
5/16 |
IIPF/THC/2I-4 |
1/8 |
3.80 |
1/4 |
2.00 |
4.80 |
36.6 |
10.2 |
15.7 |
3/8 |
IIPF/THC/4I-4 |
1/4 |
7.62 |
1/4 |
4.80 |
4.80 |
46.5 |
20.1 |
15.7 |
7/16 |
IIPF/THC/4I-6 |
1/4 |
7.62 |
3/8 |
4.80 |
710 |
48.3 |
20.1 |
17.5 |
7/16 |
IIPF/THC/5I-4 |
5/16 |
9.40 |
1/4 |
4.80 |
4.80 |
48.5 |
22.1 |
15.7 |
7/16 |
IIPF/THC/6I-6 |
3/8 |
11.43 |
3/8 |
7.60 |
7.10 |
50.3 |
22.1 |
17.5 |
9/16 |
IIPF/THC/6I-8 |
3/8 |
11.43 |
1/2 |
7.60 |
9.9 |
55.9 |
22.1 |
23.1 |
5/8 |
IIPF/THC/8I-6 |
1/2 |
15.24 |
3/8 |
9.70 |
7.10 |
52.1 |
23.9 |
17.5 |
11/16 |
IIPF/THC/8I-8 |
1/2 |
15.24 |
1/2 |
9.70 |
9.90 |
57.7 |
23.9 |
23.1 |
11/16 |
IIPF/THC/12I-12 |
3/4 |
22.86 |
3/4 |
16.0 |
15.0 |
62.0 |
26.7 |
24.6 |
1 1/16 |
