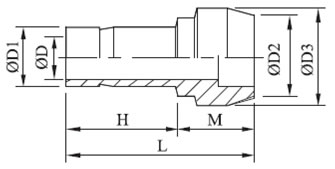

Reducing Port Connector

IMPERIAL

PART NO.

ØD2
Tube

ØD1
Tube

ØD

H

L

ØD3

M

IICF/RPC/2-1I

1/8

1/16

0.75

8.64

17.3

6.10

2.03

IICF/RPC/4-1I

1/4

1/16

0.75

8.64

18.0

9.40

3.55

IICF/RPC/4-2I

1/4

1/8

2.28

13.46

22.6

9.40

3.30

IICF/RPC/6-2I

3/8

1/8

2.20

13.46

23.2

12.70

3.81

IICF/RPC/6-4I

3/8

1/4

4.20

15.75

24.9

12.70

3.30

IICF/RPC/8-4I

1/2

1/4

4.20

15.75

29.2

15.75

3.81

IICF/RPC/8-6I

1/2

3/8

7.10

17.52

30.5

15.75

3.30

IICF/RPC/12-8I

3/4

1/2

9.90

23.11

37.9

22.10

3.81

METRIC

PART NO.

ØD2
Tube

ØD1
Tube

ØD

H

L

ØD3

M

IICF/RPC/6-3M

6

3

2.1

13.5

22.9

9.0

3.2

IICF/RPC/8-6M

8

6

4.0

15.7

24.7

11.0

3.1

IICF/RPC/10-6M

10

6

4.0

15.7

25.8

13.1

3.4

IICF/RPC/10-8M

10

8

5.6

16.8

26.1

13.1

3.1

IICF/RPC/12-6M

12

6

4.0

15.7

29.1

15.0

3.6

IICF/RPC/12-8M

12

8

5.6

16.8

30.1

15.0

3.4

IICF/RPC/12-10M

12

10

7.1

17.5

30.6

15.0

3.1

IICF/RPC/16-12M

16

12

8.8

23.1

37.5

19.0

3.4
