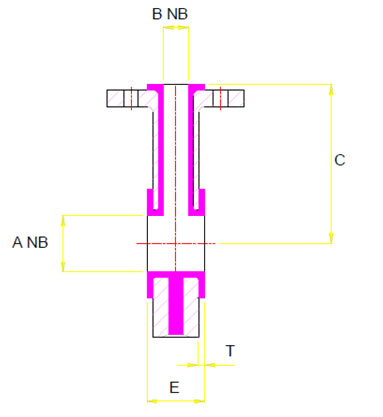

Lined Instrument Tee





Instrument Tee 25 - 300
ANSI # 150
S.G. Iron to EN-GJS-400-18-LT
Steel Fabrication
Body plate: BS 1501 - 151 - 430A
Tube: API 5L Gr. B
Flange: ASTM A 105N
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene - ASTM D 4101



A	C	T	E	~kg	E	~kg	E	~kg	E	~kg	E	~kg	E	~kg
	mm	mm	mm		mm		mm		mm		mm		mm
			x 15	x 15	x 20	x 20	x 25	x 25	x 32	x 32	x 40	x 40	x 50	x 50
25	89	5.6	51	4.2	51	4.5	51	2
40	102	5.6	51	5.4	51	5.7	51	2.5	76	3.7	76	8.5
50	141	5.6	51	6.8	51	7	51	3.3	76	4.9	76	11		5.6
80	160	5.6	51	9	51	9	51	4.3	76	6.4	76	15	89	7.4
100	179	5.6	51	10	51	10.2	51	5.5	76	8.2	76	16	89	9.4
125	205	6.4	51	14	51	14	51	6.2	76	9.7	76	23	89	11.1
150	205	6.4	51	15	51	16	51	7.5	76	11.2	76	29	89	12.8
200	237	7.1	51	17	51	18	51	10.7	76	16.0	76	35	89	18.3
250	264	7.9	51	25	51	26	51	12.5	76	18.7	76	41	89	21.4
300	318	7.9	51	32	51	33	51	14.5	76	21.7	76	53	89	24.8



8 - Hole patterns require threaded bolt holes on 50 nb branch items.



Instrument Tee 350 - 600
ANSI # 150
Steel Fabrication
Body plate: BS 1501 - 151 - 430A
Tube: API 5L Gr. B
Flange: ASTM A 105N
PFA - ASTM D 3307 type II
