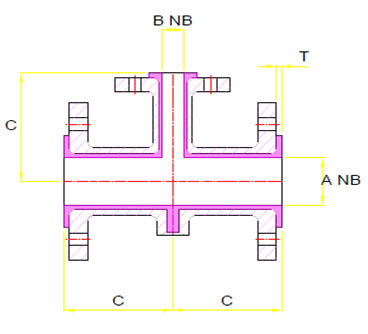

Lined Reducing Tee
Reducing Tee 25 - 150
ANSI # 150
S.G. Iron - EN-GJS-400-18-LT
Cast Steel - ASTM A 216 WCB
Steel Fabrication
Body Plate: BS 1501-151-430A
Tube: API 5L gr. B
Flange: ASTM A 105
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene -to ASTM D 4101
A mm |
B mm |
C mm |
T mm |
~kg |
25 |
15 |
89 |
5.6 |
4 |
25 |
20 |
89 |
5.6 |
4.5 |
40 |
15 |
102 |
5.6 |
6 |
40 |
20 |
102 |
5.6 |
6.5 |
40 |
25 |
102 |
5.6 |
6.5 |
50 |
20 |
114 |
5.6 |
7 |
50 |
25 |
114 |
5.6 |
8 |
50 |
40 |
114 |
5.6 |
9 |
80 |
25 |
140 |
5.6 |
14 |
80 |
40 |
140 |
5.6 |
15 |
80 |
50 |
140 |
5.6 |
16 |
100 |
25 |
165 |
6.4 |
23 |
100 |
40 |
165 |
6.4 |
25 |
100 |
50 |
165 |
6.4 |
27 |
100 |
80 |
165 |
6.4 |
29 |
150 |
25 |
203 |
7.1 |
40 |
150 |
40 |
203 |
7.1 |
44 |
150 |
50 |
203 |
7.1 |
47 |
150 |
80 |
203 |
7.1 |
50 |
150 |
100 |
203 |
7.1 |
53 |
Reducing Tee 200 - 300
ANSI # 150
S.G. Iron - EN-GJS-400-18-LT
Cast Steel - ASTM A 216 WCB
Steel Fabrication
Body Plate: BS 1501-151-430A
Tube: API 5L gr. B
Flange: ASTM A 105
PFA - ASTM D 3307 type II
PVDF - ASTM D 3222
Polypropylene -to ASTM D 4101
A mm |
B mm |
C mm |
T mm |
~kg |
200 |
25 |
229 |
7.9 |
68 |
200 |
40 |
229 |
7.9 |
70 |
200 |
50 |
229 |
7.9 |
72 |
200 |
80 |
229 |
7.9 |
74 |
200 |
100 |
229 |
7.9 |
77 |
200 |
150 |
229 |
7.9 |
80 |
250 |
100 |
279 |
7.9 |
112 |
250 |
150 |
279 |
7.9 |
114 |
250 |
200 |
279 |
7.9 |
120 |
300 |
100 |
305 |
9.5 |
150 |
300 |
150 |
306 |
9.5 |
155 |
300 |
200 |
306 |
9.5 |
165 |
300 |
250 |
306 |
9.5 |
174 |
Reducing Tee 350 - 500
ANSI # 150
Steel Fabrication
Body Plate: BS 1501-151-430A
Tube: API 5L gr. B
Flange: ASTM A 105
PTFE: ASTM D 4894 Type IV
A mm |
B mm |
C mm |
T mm |
~kg |
350 |
300 |
356 |
10 |
310 |
250 |
300 |
|||
200 |
290 |
|||
150 |
205 |
|||
100 |
200 |
|||
400 |
350 |
381 |
10 |
380 |
300 |
365 |
|||
250 |
355 |
|||
200 |
290 |
|||
150 |
235 |
|||
100 |
250 |
|||
450 |
400 |
419 |
10 |
450 |
350 |
||||
300 |
||||
250 |
||||
200 |
||||
150 |
||||
100 |
||||
500 |
450 |
457 |
10 |
510 |
400 |
||||
350 |
||||
300 |
||||
250 |
||||
200 |
||||
150 |
||||
100 |
